Minelab Manticore & SPECIAL Full Kit Package

MANTICORE with Multi-IQ+

The highest-powered simultaneous multi-frequency machine on the market — nothing else comes close.

OVERVIEW

MANTICORE with Multi-IQ+ is the most powerful, fastest, and precise metal detector in Minelab’s history. The heart of MANTICORE is its super-charged Simultaneous Multi-Frequency (MULTI-IQ+) engine. This feat of innovation generates an incredible 50% power increase over the best-selling detector series of all time: EQUINOX. When combined with advanced 2D Target Identification (ID) and rich audio options, the detectorist has every bit of vital information arriving at their eyes and ears. MANTICORE is an unrivalled detecting experience that pushes the boundaries of detecting to deliver more power, more depth, and more finds.

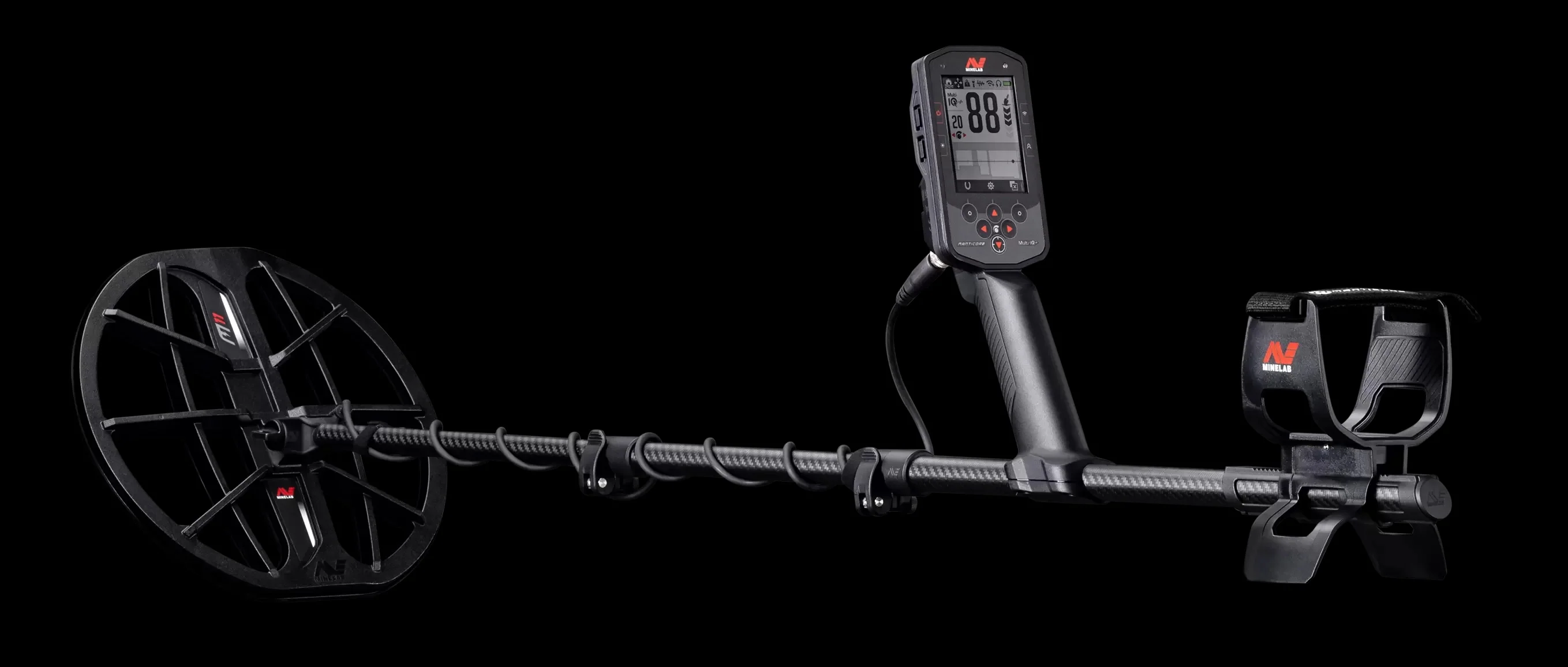

MANTICORE High Power Metal Detector

Manticore finds targets faster, more clearly, and in even the most challenging environments. With impressive capabilities and technologies, nothing will go undetected. More effective than even the most high-end models in the market, Manticore brings power, precision and accuracy to detecting in a way that wasn’t previously possible.

MULTI IQ+: Minelab’s revolutionary technology has 50% more power than traditional models and is the highest-powered simultaneous multi-frequency machine on the market.

FAST RESPONSE: Identify your targets quickly and confidently to efficiently sort between trash and treasure with exceptional target separation performance.

POWERFUL 2D ID MAP: Identify your targets with greater visual and audible target insights.

ENHANCED DISCRIMINATION: Exceptionally accurate target ID allows you to accept or reject finds quickly and confidently.

WIRELESS AUDIO: Clearly detect with audio controls set specifically for you in order to identify targets confidently, reduce noise and identify trash.

ULTIMATE SEARCH MODES: Over 10+ preset search modes allow you to set the stage for success, with the ability to customize up to 10 unique modes tailored to your specific needs.

UNRIVALLED CONSTRUCTION & WATERPROOF: Powerful yet lightweight, Manticore weighs only 1.3 kg (2.9 lbs.) and includes a three-piece, compact Carbon-Fibre shaft system. Waterproof up to 16 ft (5 m).

INTUITIVE CONTROL: The large LCD panel allows for easy viewing and clear navigation control.

BOOSTED EMI IMMUNITY: In challenging environments, improved EMI rejection uses higher sensitivity to isolate targets.

CHOICE OF COILS: Comes with the M11 (11" Round Double-D coil).

LIGHTING & VIBRATION: Detect even when the sun goes down with features such as Control Box Flashlight, Display Backlight with Auto Adjust, Backlit Keypad and Handgrip Vibration.

CLEAR AUDIO: Built in external speaker allows for crystal-clear audio and comes with Low Latency Wireless Headphones.

BUILT TO LAST: A three-year warranty with software upgrade capability allows detection far into the future.

MANTICORE Technical Specifications

Detect Modes: (Customizable) All-Terrain (5), Beach (4), Goldfield (1)
Operating Frequencies: Multi-IQ+, 5 kHz, 10 kHz, 15 kHz, 20 kHz, 40 kHz
Noise Cancel: Auto, Continuous Auto, Manual (-9 to +9)
Ground Balance: Auto, Manual, Tracking
Sensitivity: 1 to 35
Target Identification: Conductive: 0-99 with ferrous indication
2D ID Map: Two-Dimensional ID Map System with Target Trace
Target Tones: 1, 2, 5 - Tone | 1, 2, 5 - Region All Tones
Target Volume: 0 to 25
Target Pitch: 1 to 50
Ferrous Volume: 0 to 25
Ferrous Pitch: 1 to 50
Audio Themes: Normal, Enhanced, Continuous Pitch
Volume Profiles: Simple, Medium, Rich, Overdrive
Threshold Level: 0 to 25
Threshold Pitch: 1 to 50
Recovery Speed: 0 to 8
Ferrous Limits: Upper: 0 to 14 | Lower: 0 to 9
Ferrous Limits Custom: 1 to 4
Shortcuts: Soft Keys: 2 (Action Bar), 1 (User Button)
Depth Indicator: 5 levels
Shaft System: 3-piece highly collapsible carbon-fibre
Extended Length: 1440 mm / 56.7 inch
Collapsed Length: 630 mm / 24.8 inch
Weight: 1.3 kg / 2.9 lb
Standard Coil: (M11) 11-inch round Double-D coil with skid plate (waterproof to 5 m / 16 ft)
Audio Output: Speaker | 3.5 mm (1/8") headphones | Wireless low latency headphones
Headphones: Minelab ML-105 wireless low latency headphones (non waterproof) (Included)
Display: Color LCD
Display Backlight: Manual (1 to 10), Auto Adjust
Keypad Backlight: On, Off
Flashlight: Low, Medium, High, Off
Handgrip Vibration: On, Off
Battery: Internal rechargeable Lithium-ion battery
Battery Runtime: Approx. 9 hours
Battery Charge Time: Approx. 7 hours
Waterproof: Waterproof to 5 m / 16 ft, IP68
Key Technologies: Multi-IQ+ (High Power Simultaneous Multi-Frequency)
Included Accessories: USB Charging Cable, 5x Screen Protectors, 3.5 mm Headphone Audio Cable, Headphone Case
Software Upgradable: Yes - via USB connection (Windows or Mac OS compatible)

Detect Modes (Customisable)

All-Terrain (5), Beach (4), Goldfield (1)

Operating Frequencies

Multi-IQ+, 5 kHz, 10 kHz, 15 kHz, 20 kHz, 40 kHz

Noise Cancel

Auto, Continuous Auto, Manual (-9 to +9)

Ground Balance

Auto, Manual, Tracking

Sensitivity

1 to 35

Target Identification

Conductive: 0-99 with ferrous indication

2D ID Map

Two-Dimensional ID Map System with Target Trace

Target Tones

1, 2, 5 - Tone | 1, 2, 5 - Region All Tones

Target Volume

0 to 25

Target Pitch

1 to 50

Ferrous Volume

0 to 25

Ferrous Pitch

1 to 50

Audio Themes

Normal, Enhanced, Continuous Pitch

Volume Profiles

Simple, Medium, Rich

Threshold Level

0 to 25

Threshold Pitch

1 to 50

Recovery Speed

0 to 8

Ferrous Limits

Upper: 0 to 14 | Lower: 0 to 9

Ferrous Limits Custom

1 to 4

Shortcuts

Soft Keys: 2 (Action Bar), 1 (User Button)

Depth Indicator

5 levels

Shaft System

3-piece highly collapsible carbon-fibre

Extended Length

1440 mm / 56.7 inch

Collapsed Length

630 mm / 24.8 inch

Weight

1.3 kg / 2.9 lb

Standard Coil (M11)

11-inch round Double-D coil with skidplate (waterproof to 5 m / 16 ft)

Audio Output

Speaker | 3.5 mm (1/8") headphones | Wireless low latency headphones

Headphones (Included)

Minelab ML-105 wireless low latency headphones (non waterproof)

Display:

Colour LCD

Display Backlight

Manual (1 to 10), Auto Adjust

Keypad Backlight

On, Off

Flashlight

Low, Medium, High, Off

Handgrip Vibration

On, Off

Battery

Internal rechargeable Lithium-ion battery

Battery Runtime

Approx. 9 hours

Battery Charge Time

Approx. 7 hours

Waterproof

Waterproof to 5 m / 16 ft, IP68

Key Technologies

Multi-IQ+ (High Power Simultaneous Multi-Frequency)

Included Accessories

USB Charging Cable, 5x Screen Protectors, 3.5 mm Headphone Audio Cable, Headphone Case

Software Upgradable

Yes, via USB connection (Windows or Mac OS compatible)

Warranty

Please refer to www.minelab.com/warranty-conditions for full warranty terms and conditions. Register your product warranty online at register.minelab.com

MULTI-IQ+

High Power Simultaneous Multi-Frequency

Low frequencies typically give more depth on large targets than high frequencies, which are usually more sensitive to small targets. With Multi-IQ+ you can operate across the full spectrum of frequencies simultaneously for maximum results.

Gold Detectors

Price

Collections

GPZ 7000 Accessories Package

Minelab Equinox 900

MINELAB GPZ 7000 with PREMIUM TRAINING

Minelab Manticore & SPECIAL Full Kit Package

Minelab GPX 6000 with PREMIUM TRAINING PACKAGE (In-store or Call for Orders)

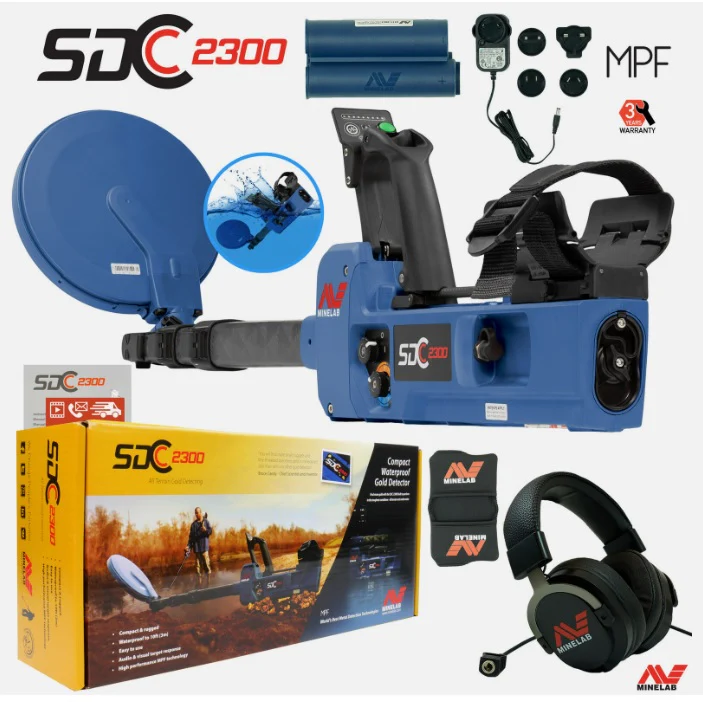

MINELAB SDC 2300 PERFORMANCE PACKAGE

BLACK Gold FLUX 500g (~1 Pound)

GPX 6000 TOP UP Package

GPX 6000 FULL TOP UP Battery Package

GPX 6000 TOP UP STANDARD

GPX 6000 TOP UP COIL and BATTERY Package

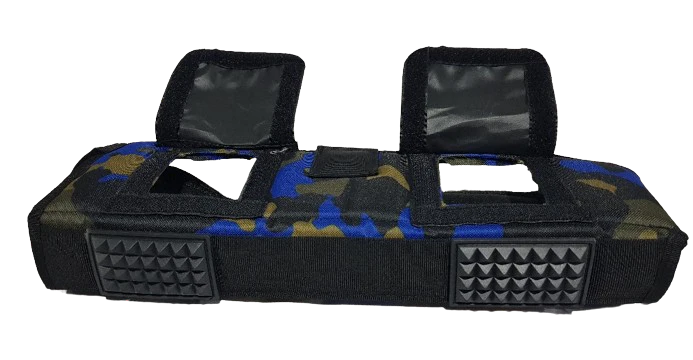

SDC QUICK Top Up Package
